Tubes in FeCrAl alloys are available from stock in the following sizes:
| Tube size,mm (inch) OD x wt |
Alloy | Threads |
| 40x3 (1.57" x 0.12") |
APM/APMT | 1 ¼" BSP |
| 35x1.5 (1.38" x 0.06") |
Alkrothal | |
| 33.4x3 (1.33" x 0.1") |
APM/APMT | 1" BSP |
| 26.67x2.87 (1.05" x 0.11") |
APM/APMT | ¾" BSP |
| 22x2.0 (0.9" x 0.8") |
AF | BSP: ½", ¾", 1" NPT:½", ¾", 1" |
| 22x1,3 (0.9" x 0.05") |
AF | BSP: ½", ¾", 1" NPT:½", ¾", 1" |
| 19x1.3 (0.8" x 0.05") |
AF | BSP: ½", ¾", 1" NPT:½",¾" |
| 15x1.3 (0.59" x 0.05") |
AF | BSP: ½", ¾" NPT: ½", ¾" |
| 15x1.0 (0.59" x 0.04") |
A-1 | BSP: ½", ¾" NPT:½",¾" |
| 6.5x0.8 (0.26" x 0.03") |
AF | BSP: ½" |
| 6x0.4 (0.25" x 0.015") |
D | BSP: ½" |
Since we have these tubes in stock and an efficient distribution organisation, we can deliver these tubes within one week, to any corner of the world, if required.

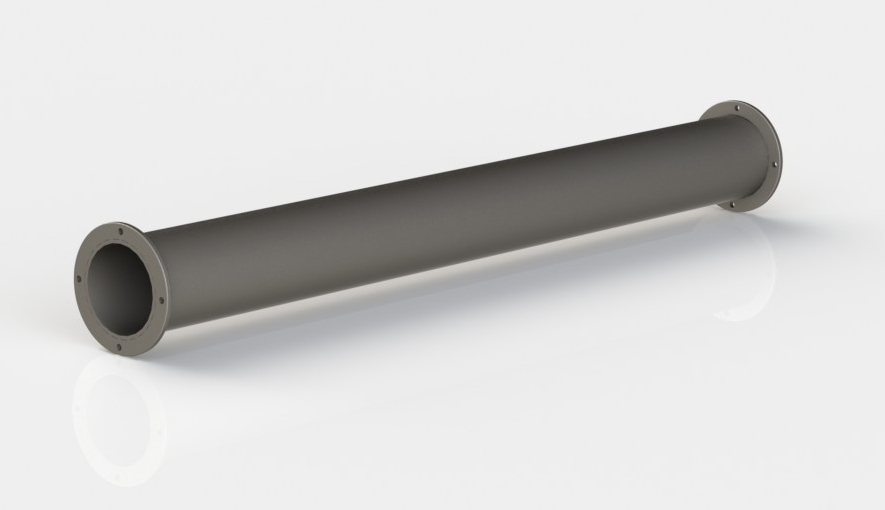

Kanthal APM/APMT is available in tube sizes up to an outer diameter of 220 mm (8.66").
The tubes are available in lengths up to 13 meters (42.6 feet) or cut to shorter lengths, equipped with a closed end and a thread for protection tubes or connections for the inlet of protection tubes, and for muffle tubes.
